雙通道的導軌中繼器電源,D1010D,提供了一毫安個完全浮動促進傳統的直流供電2線4 - 20發射器,或單獨驅動的3、4線4,馬0-20發射器位于危險區域,并重復當前在浮動負載電路來驅動一個安全區域。
電路允許雙向通信信號,Hart-Smart發射器。
特性
?輸入?yún)^(qū)0(區20),部門1,安裝在區域2中,部門2。
?高密度2獨立通道。
?4或馬0-20輸入、輸出信號。
?寬帶智能通信,哈特兼容。
?輸入和輸出短路證明。
?精度高。
?三個端口隔離,輸入/輸出/供應。
?EMC EN61000-6-2兼容性,EN61000-6-4 EN61326-1
產品描述

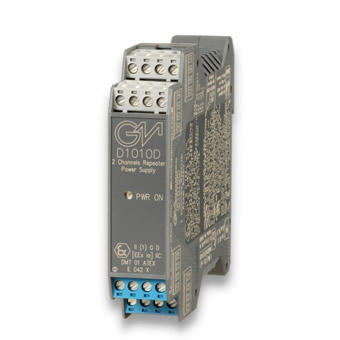

The dual channel DIN Rail Repeater Power Supply, D1010D, provides a fully floating dc supply for energizing conventional 2 wires 4-20 mA transmitters, or separately powered 3, 4 wires 4-20, 0-20 mA transmitters located in Hazardous Area, and repeats the current in floating circuit to drive a Safe Area load.
The circuit allows bi-directional communication signals, for Hart-Smart transmitters.
特點
? Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2.
? High density with 2 independent channels.
? 4-20 or 0-20 mA Input, Output Signal.
? Wide Band Smart Communication, Hart compatible.
? Input and Output short circuit proof.
? High Accuracy.
? Three port isolation, Input/Output/Supply.
? EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1
? In-field programmability by DIP Switch.
